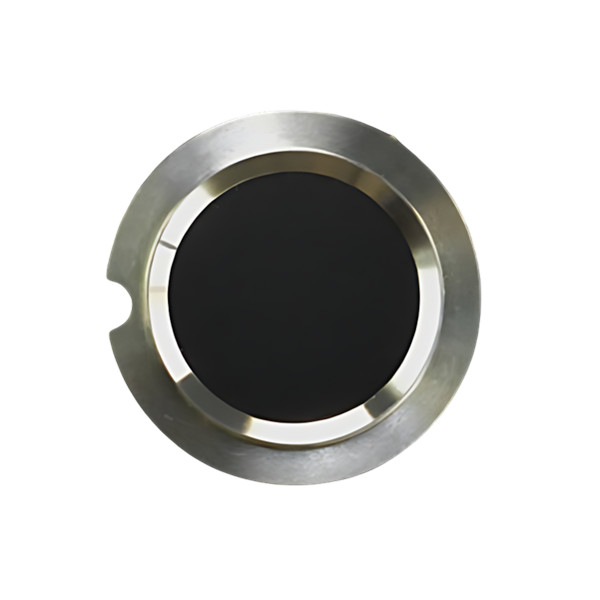

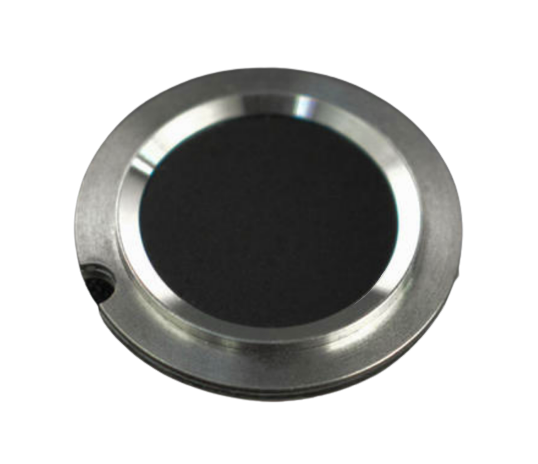

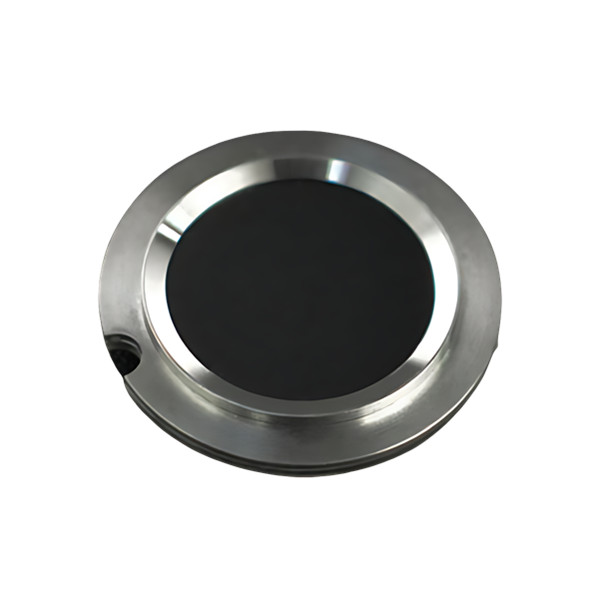

Semiconductor fingerprint module

Model: ID1016C
Sensor: capacitive
Capacity: 80/200
Interface: Uart

Semiconductor fingerprint module with integrated main board and capacitive sensor, small size, low power consumption and high reliability


Semiconductor fingerprint module IDWD1016C integrates fingerprint collection, processing, storage and fingerprint comparison. With ID809/811 high-performance processor and capacitive fingerprint sensor as the core, it runs the brand-new IDFinger V6.0 fingerprint algorithm which is widely praised in the industry. It is deeply optimized, comprehensively accelerated, fingerprint recognition is fast and accurate, and can independently complete all fingerprint recognition tasks. . IDWD1016C uses standard UART communication and cooperates with the SDK development kit to meet customer fingerprint identification requirements such as fingerprint entry, image processing, template generation, and fingerprint comparison. The appearance is exquisite, light and thin, and the ring-shaped cool breathing lamp design.


technical parameter:

project description

Model: IDWD1016C

CPU: ID809811

Fingerprint sensor: dpi: 508 pixels: 160*160

Fingerprint capacity: 80/200/500

FAR:<0.001% (Security Level is 3)

FRR:<0.1% (Security Level is 3)

Comparison method: 1:N and 1:1 comparison

Fingerprint template size: 1008 Byte

Security level setting: Level 1 to Level 5 can be set, factory setting value: Level 3

Processing speed: fingerprint feature extraction time<1 second 1: N comparison time (when 200 full registrations) <0.8 second

Communication interface: UART, 3.3V-TTL level

Baud rate: Baud rate is 9600, 19200, 38400, 57600, 115200 (bps) Factory setting: 115200bps

Working voltage: Win voltage: DC3.3V±10%

Working current:<40mA

Working environment: working temperature: -10℃- 60℃ relative humidity: 20%-80%


Semiconductor fingerprint module IDWD1016C is widely used in: fingerprint locks, fingerprint safes, fingerprint padlocks, fingerprint access control, time and attendance, fingerprint U disk and other industries that require fingerprint authentication.

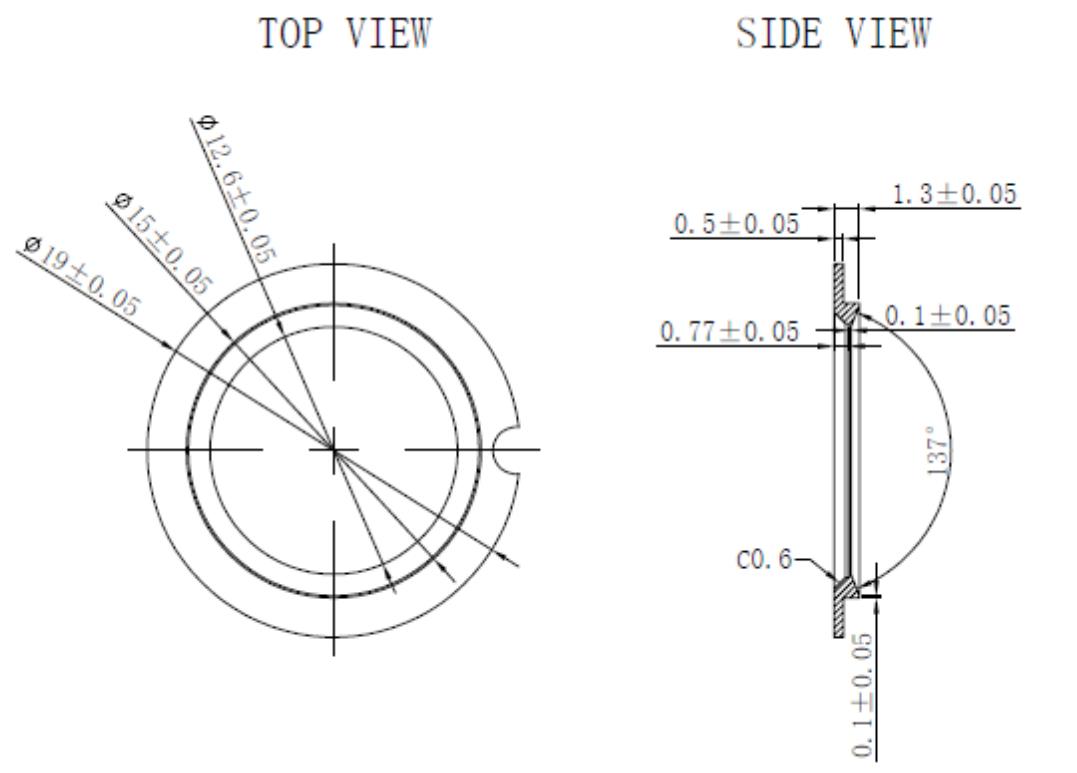

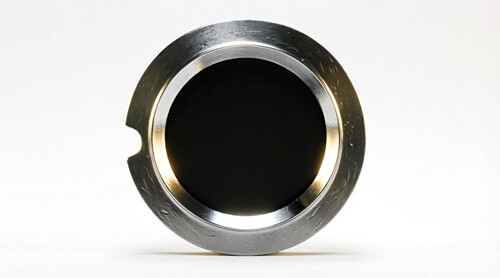

Semiconductor fingerprint module


Product specifications, communication instruction set, Demo and source code
