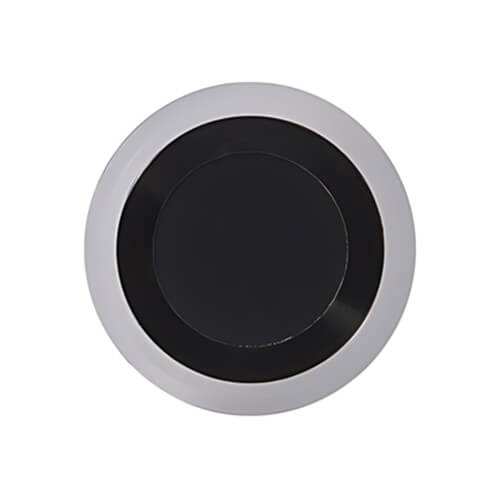

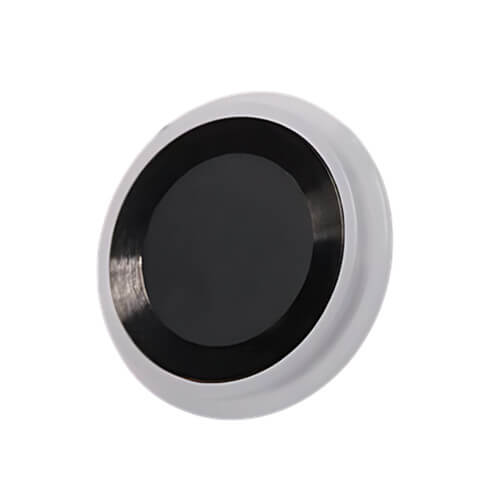

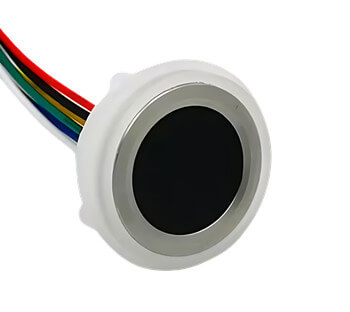

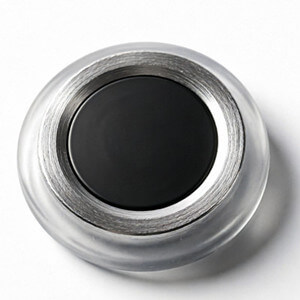

Capacitive Fingerprint Sensor Module

INTRODUCTION

The capacitive fingerprint sensor module ID1016 is a high-end semiconductor fingerprint recognition module developed by IDWorld. It has a compact structure and supports embedded systems, Windows systems and various Android devices. It uses standard UART communication, and with the SDK development kit, it can easily realize the customer's fingerprint recognition function requirements. The new generation of IDFinger high security fingerprint algorithm from IDFinger has high image quality, high forgery resistance and effectively eliminates fake fingers and fingerprints, etc. The IDFinger high security fingerprint algorithm is well received by users worldwide and has a self-learning function, in particular, the newly extracted fingerprint features are fused into the fingerprint database after successful recognition. This enables the user to use the fingerprint more and more efficiently in the process.

APPLICATIONS

Fingerprint door lock

Fingerprint attendance machine

Fingerprint access control

Drawer lock

padlock

SPECIFICATION

CPU: ID811

Sensor: Semiconductor

Image size: 160*160 pixel

Image resolution: 508dpi

False recognition rate (FAR): Less than0.0001%

Rejection Rate (FRR): Less than2%

Matching time: Less than0.1 sec (1:1), Less than0.5 sec (1:N ,80 pcs)

Matching method: 1:1, 1:N

Fingerprint template size: 1008 bytes

Storage capacity: 80/200 fingerprints (optional)

Communication interface: UART or USB1.1/2.0 compatible SPI (custom)

Operating voltage: 3.3

Operating current: Less than40mA

Operating temperature: -10°C～55°C

Storage temperature: -40°C to 60°C

Operating Humidity: 20～90% R.H

Storage humidity: 17%～96%

DOCUMENTS

Technical development data

SHIPPING LIST

capacitive fingerprint sensor x1

1.0 Pitch 6P cable x1
