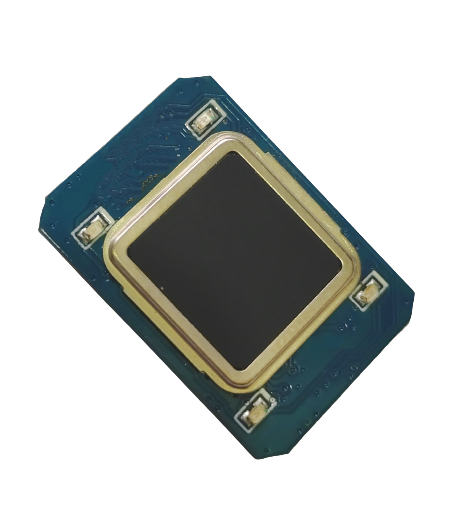

Fpc Fingerprint Reader

Sensor: Capacitive 160*160 pixels  Capacity: 80 pieces  Communication: Uart

Fpc fingerprint reader ID160 is a secondary development module. Adopt ID811 high-performance main control chip, capacitive fingerprint sensor, run independent high-security IDFinger fingerprint algorithm, support fingerprint collection, fingerprint image processing, fingerprint image optimization, fingerprint calculation, fingerprint conversion, fingerprint feature value extraction, fingerprint comparison, etc. technology, customers can quickly develop various fingerprint products only by calling the simple protocol of the module.


Sensor Type - Capacitive Sensor

Resolution - 508 DPI

Image Pixel Array - 160×160

Fingerprint capacity - 200 pieces

Comparison time-Less than500 ms (1:N, and N≤100)

Falsehood rate - Less than 0.001%

Rejection rate - Less than 2%

Working voltage -3.3V

Operating current - Less than 40mA

Sleep Current - Less than 16uA

Communication interface - UART

Communication baud rate - 115200 bps

Working environment - temperature: -20°C ~ 70°C; humidity: 40%RH ~ 85%RH (no frost)

Storage Environment - Temperature: -40°C ~ 85°C; Humidity: Less than 85%RH (no frost)


The Capacitive Fingerprint Identification Sensor ID160 can be widely integrated into industries that require fingerprint authentication.

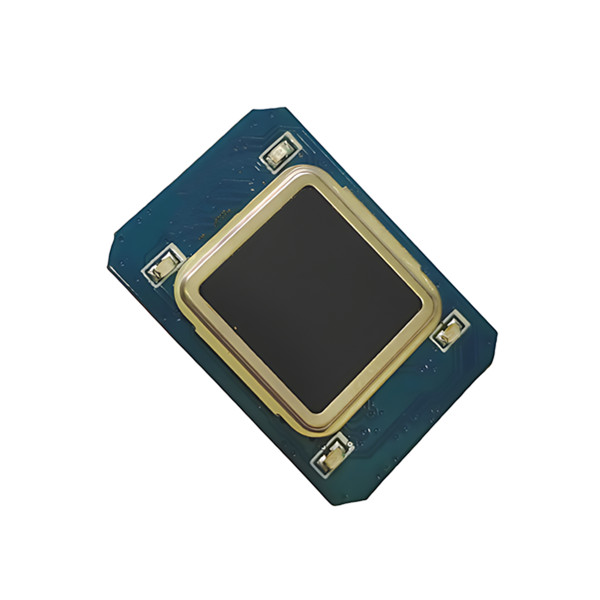

fpc fingerprint reader

Packing list

1.0mm-6PIN cable

Fpc fingerprint reader
